1.3 Inch 240x240 IPS TFT LCD Display Module | ST7789V Driver | High Brightness | SPI Interface
Dettagli:
| Luogo di origine: | Cina |
| Marca: | Royal Display or ODM/OEM |
| Certificazione: | SGS, ROHS |
| Numero di modello: | RYT013NAW01-L |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | Negoziabile |
|---|---|
| Prezzo: | negoziabile |
| Imballaggi particolari: | Cartoni, Capboard, EPE, vassoio per vesciche. |
| Tempi di consegna: | 15-25 giorni lavorativi |
| Termini di pagamento: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Capacità di alimentazione: | 300 mila pezzi al mese |
|
Informazioni dettagliate |
|||
| Tipo di visualizzazione: | 1.3 tft | Angolo di visualizzazione: | Tutto |
|---|---|---|---|
| Driver IC: | ST7789V | Numero di punti: | 240 (RGB)*240 |
| Punto: | 0,0975 (H)*0,0975 (H) mm | Temp. Operation Temp: | -20 a +70 gradi Celsius |
| Temperatura di archiviazione: | -30 a +80 gradi Celsius | Unità della lampadina: | Bianco (vf = 3,2 ± 0,3 V, if = 40 mA) |
| Evidenziare: | 1.3 inch IPS TFT LCD module,240x240 SPI display module,ST7789V driver LCD module |
||
Descrizione di prodotto

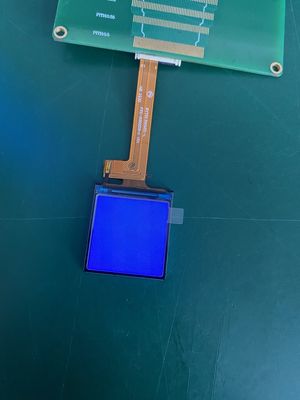

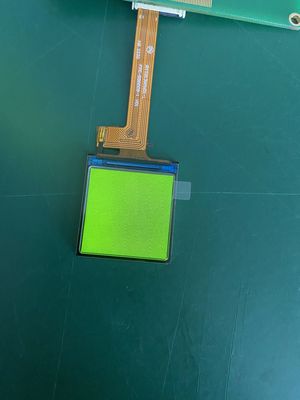

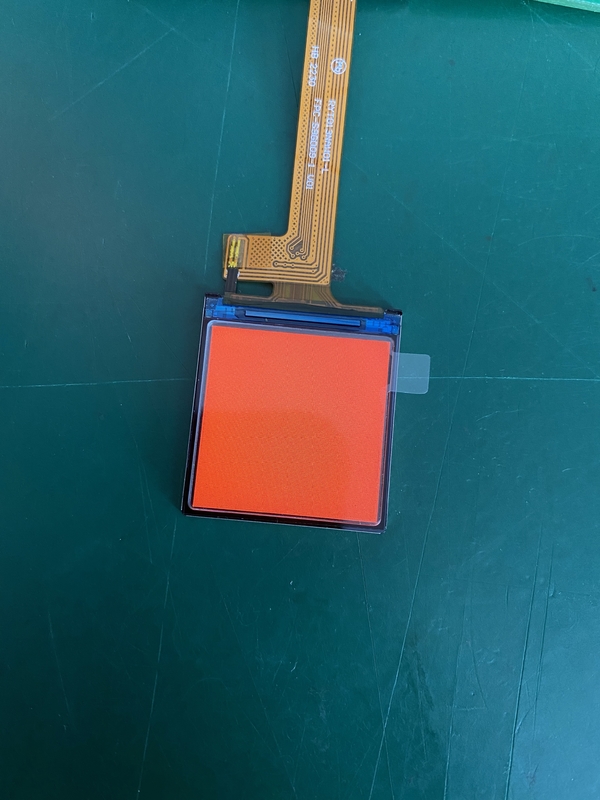

1.3'' 240*240 IPS ST7789V IC TFT LCD module
The famous brands display we have
BOE: Large-scale production, AMOLED, all-size dominance. You could get BOE LCD Modules from us, or customize display here using BOE glass.
AUO: High-quality TFT displays, perfect for many automotive and industrial scenarios. You could share product drawing or part number with us, we will check for lead time and quotation for you.
Innolux: Both glass only or original displays are available here.
Tianma: Provide abundant solutions for industrial and custom displays.
Waveshare: It's embeded solutions integrator/ reseller.
E-paper displays: E-ink, Good display, DKE or other e-paper display brands.
If you are looking for more cost-effective or some products that are EOL, you could ask for recommendations, we will send you quotation and lead time based on your requirements.
Product Description
| Item | Description |
| Product Name | 1.3'' 240*240 IPS TFT LCD module |
| Model No. | RYT013NAW01-L |
| Dot Format | 320RGB(H)x240(V) |
| Outline (mm) | 24.40*24.40*1.49 mm |
| Active Area(mm) | 23.40*23.40 mm |
| Display Mode | Normally white |
| Pixel Arrangement | RGB-Vertical Stripe |
| Display Color | 262K |
| Driver IC | ST7789V |
| Gray scale inversion Direction | 6 o'clock |
| Viewing Direction | 12 o'clock |
| Brightness | 300 cd/m2 |
| Operating Temp | -20º C~+70ºC |
| Storage Temp | -30º C~+80ºC |
| Contrast Ratio | 50 |
Short Description:
Upgrade your project with our stunning 1.3-inch full-circle IPS TFT display. Featuring a high resolution of 240x240 pixels, a brilliant IPS panel for 180° wide viewing angles, and driven by the popular ST7789V IC, this module is the perfect display solution for wearables, smart devices, and DIY electronics projects.
Our Advantages
Over 10-year expert in LCD modules, 20,000m² own factory; 12-month product warranty
OEM/ODM and customization services available, Professional R&D team and overseas sales team
100% inspection before shipment; fast delivery time; Items carry RoHS, CE and SGS marks
Products widely used in instruments and handheld devices, and the medical and automotive industries
Application
Our lcd module size are from 2.8 inch to 10.1 inch which are widely used in digital camera, dv, security monitoring, carcorder, pmp, mid and education learning aid, pos machine etc.
| Product | Application |
| Small-size tft lcd display (1.44inch~4.3inch) | Mobile device, watch, toy, medical equipment, office electronic equipment, camera, air-condition display, etc. |
| Mid-size tft lcd display (5.0inch~10.0inch) | Mobile device, medical equipment, car, automotive product, industrial control equipment, pos, pda, household video doorbell, air-condition display, etc. |
| Big-size tft lcd display (10inch and above) | Educational product, automotive product, video door phone, audiovisual equipment, dvd player, media play, tablet pc, security products, etc. |
| Tn/stn//fstn/oled | Elevator controller, watch, electronic product, air-condition display, all kinds of instrument, etc. |
| Plastic mould | Industrial control equipment, electronic product, toy, security product, it digital product, sports equipment, etc. |
FAQs
ABOUT TFT LCD DISPLAY
Thin-Film-Transistor Liquid Crystal Displays (TFTs) are perhaps the most encountered display technology we see daily. Often seen in cell phones, tablets, cameras and countless other devices, this technology offers several hundreds of thousands of colors with a high pixel count to offer supreme visual clarity. In addition, all TFTs are available off the shelf with resistive and capacitive touch panel options.
Why Choose This Display Module?
This 1.3" IPS TFT module hits the sweet spot between size, resolution, and usability. Its unparalleled wide-view clarity, driven by a standard IC with massive community support, drastically reduces development time. Whether you're a hobbyist prototyping your next idea or an engineer designing a commercial product, this display offers a reliable, high-performance, and easy-to-integrate visual solution.
Features
Broad selection of off the shelf products
Sunlight readable options available
Capacitive and Resistive options available for every display
Most products are kept in stock and can ship same day
Multiple interfaces available
Customizable FPC cables, LED backlights, and bezels
