Dettagli:
Termini di pagamento e spedizione:
|
| Tipo di esposizione: | FSTN-positivo, Stn-blu, Stn-Yg | Tipo della lampadina: | LED, bianco |
|---|---|---|---|
| Funzionamento temporaneo.: | -20º C~70º C | Impiegati di stoccaggio.: | -30º C~80º C |
| Modo LCD: | TN STN FSTN CSTN VAoptional | Modo di esposizione: | Positivo o negativo riflettente/transflective/transmissive |

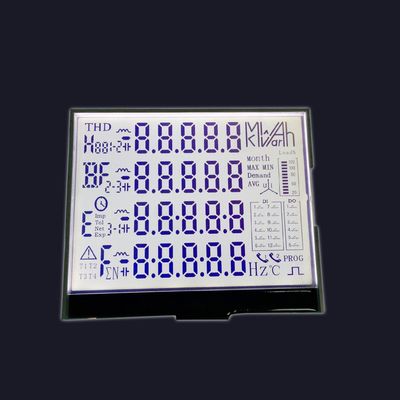

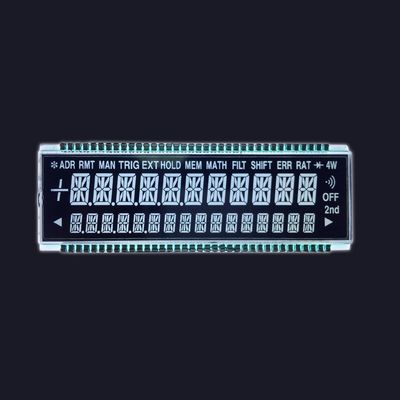

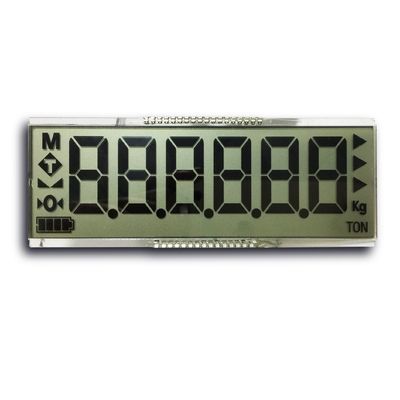

Customized TN VA module small inch display stn lcd panel
1. Typical Applications:
Industrial Instruments,meter for measuring electricity , Clusters, Car Radios, Air conditioner, Price Tag, Printer, Fax, etc
2. Features:
Transmissive, Transflective and Reflective Mode
Duty Ratio: 1:1 to 1:9
Wide Operation & Storage temperature range
Low power consumption
High reliability
Royal Display Customized All Size LCD Display Panel
PRODUCT DETAILS
| Item | Dimension | Unit |
| Module dimension | 188.0 x 148.0 x 7.9 | mm |
| View area | 130.56 x 70.0 | mm |
| View area | 62.23 x 22.86 | mm |
| Active area | 120.22 x 60.0 | mm |
| Active area | 54.87 x 18.0 | mm |
| LCD type | STN Negative, Blue Transmissive (In LCD production, It will occur slightly color difference. We can only guarantee the same color in the same batch.) |
|
| Drive Method | 1/4 DUTY,1/3BIAS | |
| View direction | 6 O'clock | |
| Backlight Type | LED, White |
OUR SERVICE ADVANTAGES
1. Small order would be accepted.
2. Mass production lead time would be guaranteed.
3. Each order will have 0.2%-0.5% spare.
4. Even customers do not have a cooperation with us, we also can provide technical services.
5. If mass production has any quality problem, customer can return it.
PRODUCTION LINES
APPLICATION
FAQ:
Q:Can we customize product? What cost will be included?
A:The product can be customized, but TFT lcd module has different tooling cost, which includes FPC, Touch Screen, Backlight ,Bezel and so on.
Q:What is your delivery method?
A:EXW ShenZhen by DHL/ UPS / FEDEX/TNT , or ship the goods to your HK/SZ forwarder.
Q:Products are in stock? How long can you deliver?
A:Our inventory is mainly raw materials,semi-finished and a small amount of finished products.After payment, Samples available in stock will be sent within 3 days; Small batch delivery takes 2-3 weeks; Large batch delivery takes 5-6 weeks
Q:What kind of packaging? The transport process will not be damaged?
A:Our products are divided into two categories, small - medium size use knife card isolation packaging, large size screens are used in aircraft box packaging, all packages are protected by outer box and strapping to ensure the safety of material transportation.
Q:How to control the quality of products?
A:The company has a professional quality team, and all products are 100% inspected before shipment.
Q:How long is the warranty and service of the product?
A:Generally the warranty period is one year. It depends on different products.We guarantee our products to be free from manufacturer defects. Liability under this warranty is limited to the replacing of any product found to be defective under normal use.
