Dettagli:
Termini di pagamento e spedizione:
|
| Risoluzione: | 192X64dots | Profilo (millimetri): | 135X65 |
|---|---|---|---|
| Connettore: | FPC | Tipo LCD: | FSTN |
| Collegamento: | FPC-saldatura | Alimentazione elettrica: | 3.3V |
| Luce solare leggibile: | Sì | Gamma di angolo di vista: | 6 in punto |

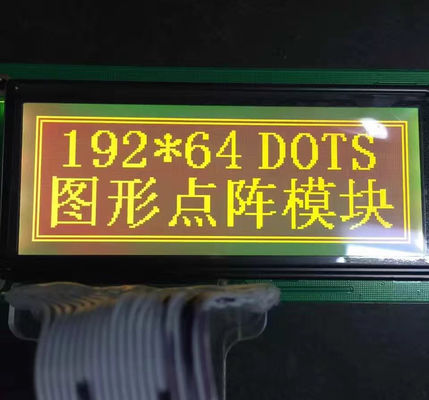

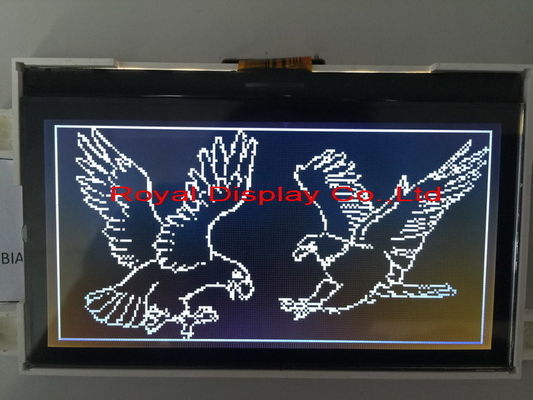

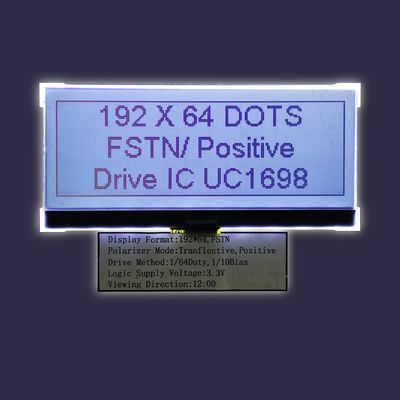

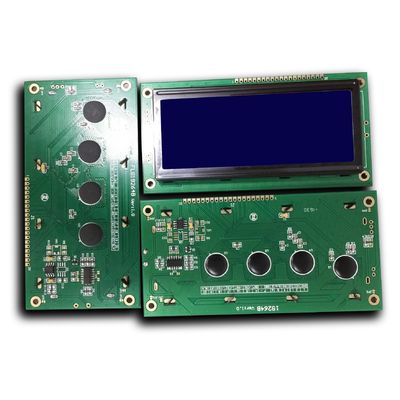

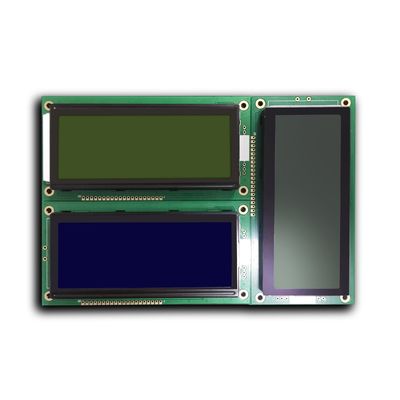

Custom 192X64 Graphic LCD Module Display
1. 192x64dots
2. Parallel interface
3. Ultra high contrast, YG & White LED backlight as option
4. STN-YG, STN-blue, STN-Gray, FSTN-Positive display results as option
PRODUCT DESCRIPTION
| Item | Description |
| Product Name | 192x64dots Graphic LCD Module |
| Model No. | RY19264 |
| Dot Format | 192x64 |
| Outline (mm) | 135*65 |
| Viewing Area(mm) | 6:00 |
| Pixel Size( mm) | 0.43 x 0.42 |
| Viewing Angle | 6 O' clock |
| LCD Type | FSTN-Positive, STN-Gray |
| Backlight | White or Amber LED backlight |
| Driver IC | ST7586S |
| Power supply | 3.3V |
| Interface | Parallel |
| Operating Temp | -20º C~70ºC |
| Storage Temp | -30º C~80ºC |
ACCESSORIES
Royal Display can provide many accessories to go with your display. If you would like to source a connector, cable, test jig or other accessory preassembled to your LCD (or just included in the package), our team will make sure you get the items you need. Get in touch with a team member today to accessorize your display!
WARRANTY
Royal Display offers the original purchaser who has purchased a product from the lcd module tft a limited warranty that the product (including accessories in the product's package) will be free from defects in material or workmanship.
WHAT CAN WE CUSTOM?
1.LCD type: VA/TN/HTN/STN Yellow-Green/STN Gray/STN Blue/FSTN/DFSTN
2.Display form: LCD panel/COB/COG/COF
3.Polarizer: Transflective, Transmissive, Reflective
4.Backlight: Green, Gray, Yellow-Green, Blue, Black, White, Orange/Amber, others
5.Operating temperature: 0 to +50°C, -10 to +60°C, -20 to +70℃,-30 ℃ +85 ℃, others
6.Connector/Connection: Metal PIN, Rubber/Zebra, Heat seal, FPC, FFC
APPLICATION
The professional manufacturer of LCD, LCD module, and LED backlight
